Angles in Polygons, Interior and Exterior

Angles in Polygons

A polygon is a 2D shape with n straight sides.

Examples of Polygons:

• Triangle – 3 sides

• Quadrilateral – 4 sides

• Pentagon – 5 sides

• Hexagon – 6 sides

• Octagon – 8 sides

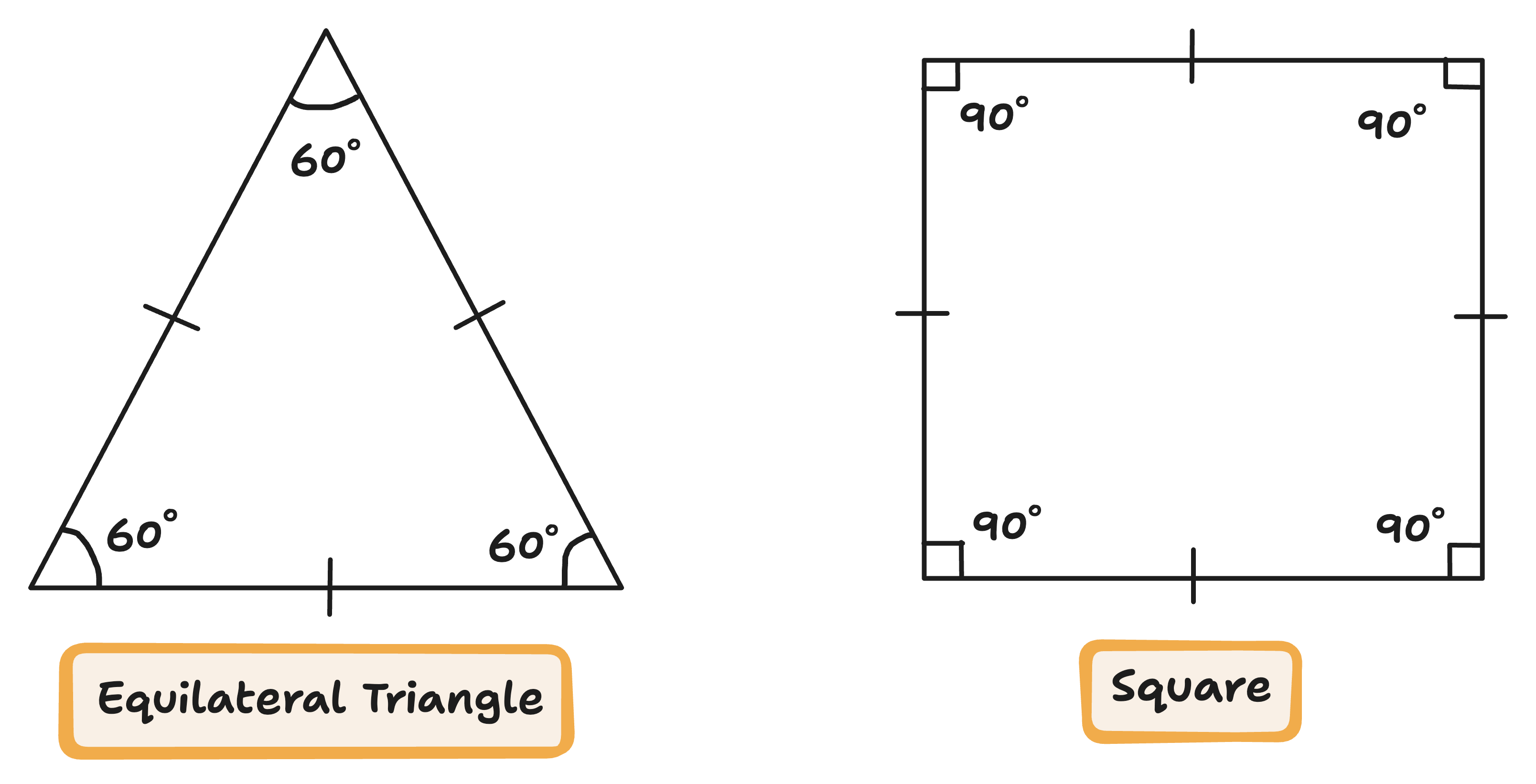

Regular Polygons:

A regular polygon has equal side lengths and equal angles.

• Example: An equilateral triangle (3 equal sides, 3 equal angles of $60 \degree$).

• Example: A square (4 equal sides, 4 equal angles of $90 \degree$)

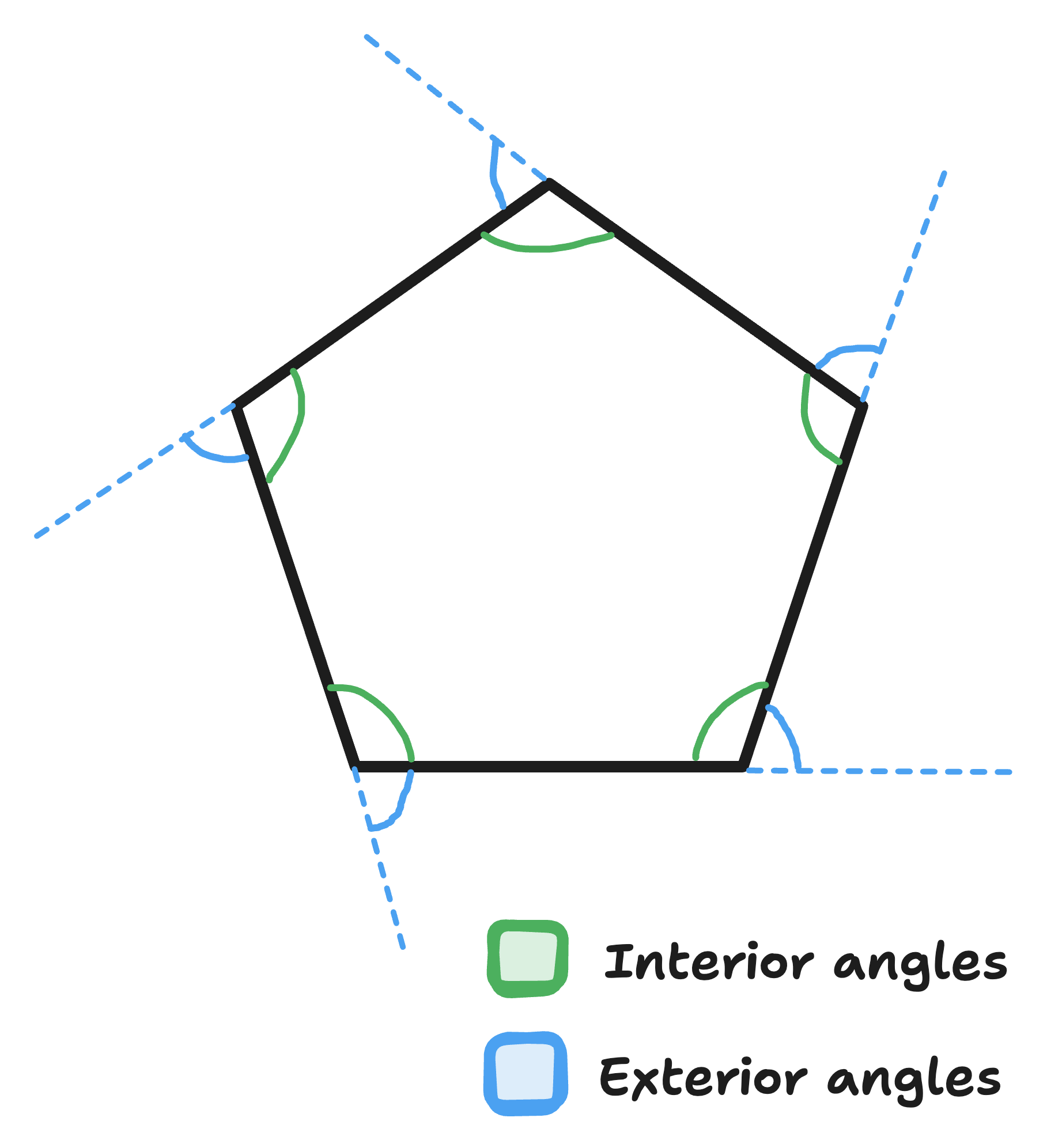

Interior and Exterior Angles of a Polygon

Interior angles are inside the polygon at each vertex.

Exterior angles help form a straight line with the interior angles.

Interior and exterior angles at each vertex add up to $180 \degree$.

Sum of Interior Angles Formula:

$$\text{Sum of interior angles } = (n - 2) \times 180 \degree$$

where n is the number of sides.

Sum of Exterior Angles Formula:

$$\text{Sum of exterior angles } = 360 \degree$$

Finding the Interior and Exterior Angles of a Regular Polygon:

Find the sum of the interior angles:

Find each interior angle:

Find each exterior angle:

$$\frac{360 \degree}{n}$$

Example: Regular Pentagon (5 sides)

• Sum of interior angles: $$(5 - 2) \times 180 \degree = 540 \degree$$

• Each interior angle: $$540 \degree \div 5 = 108 \degree$$

• Each exterior angle: $$360 \degree \div 5 = 72 \degree$$



Final Answer: Interior angle = $108 \degree$, Exterior angle = $72 \degree$.
